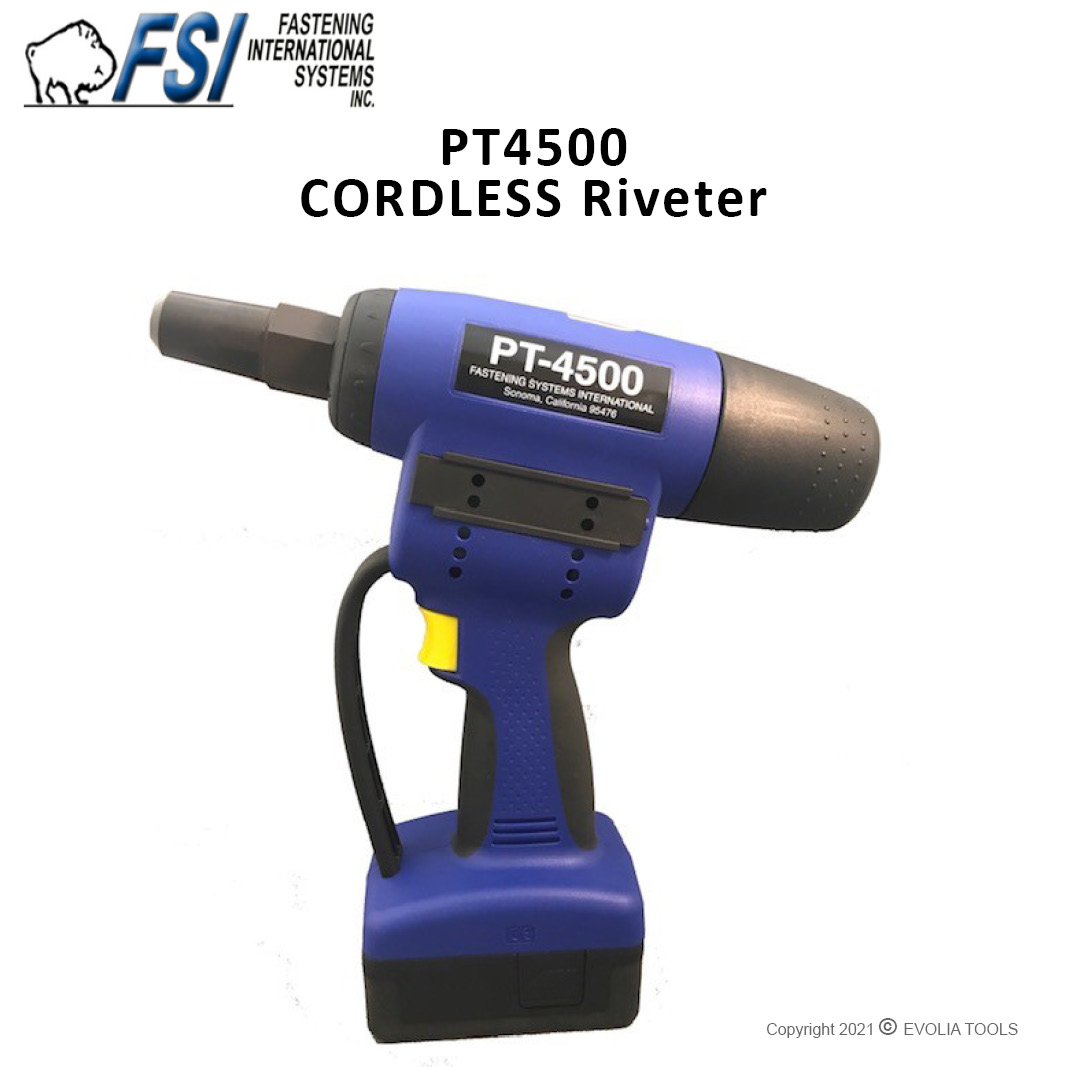

The New, Higher Capacity PT-4500 Cordless Blind Riveter offers the sheet metal technician capability for installation of most all 1/4” diameter blind rivets while retaining all the features of the PT-4000 with respect to size, weight and versatility.

Powered by a slide on 18 VDC Li-Ion battery pack with fuel gage, the PT-4500 brushless motor drives a mechanical ball screw gear system that provides capability for the most demanding applica-tions. With its rapid extended stroke capability the tool is compa-rable to most all air operated riveters, thereby optimizing cycle time between any blind rivet installation. Weighing less than 5 lbs with the standard nose assembly in place, sheet metal artisans will immediately find this riveter to offer the ultimate in overall perfor-mance and reliability.

The PT-4500 Kit includes the tool, 1 each battery pack and dual voltage battery charger.

Standard Configuration

RIVET TYPES For CherryMax & Pop Rivets Configuration

• xxx
• xxx
• xxx

CherryMax & Pop Rivets Configuration

RIVET TYPES For CherryMax & Pop Rivets Configuration

• xxx
• xxx
• xxx

MS90353/54 “U” & “S” Type
Blind Bolt Configuration

RIVET TYPES For Blind Bolt Configuration

• xxx
• xxx
• xxx

CherryMax Pulling Head Configuration

RIVET TYPES For CherryMax Pulling Head Configuration

• xxx
• xxx
• xxx

Specifications for PT-4500

Pulling Force:
5,000

lbs.Stroke:
0.984”

Dimensions:
11.5” H x 12” L x 3.25” W

Power Source:
2.1 Ah, 18vdc Li-Ion Battery Charger

Source:
Dual Voltage
120 volt, 60Hz
220 volt, 50 Hz

Charger Cycle Time:
40

Minutes Optimal Operating Temp.
50 to 122°F

Housing Material:
Impact Resistant
Glass Filled Nylon
